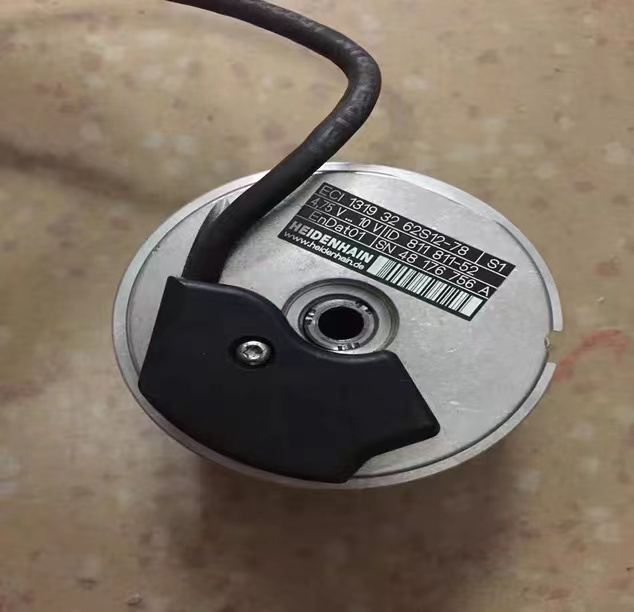

海德汉 HEIDENHAIN编码器 811811-52 ECI 1319 32 62S12-78

ECI 1319
Absolute modular rotary encoder (singleturn) with
inductive scanning without integral bearing
Positions per
revolution:             524288
Data interface:         EnDat01
Output code:            Binary
Line count:             32
Output signal:          ~1Vpp
Cutoff frequency (-3
dB):                    6.00 kHz
Power supply:           4.75 V ... 10 V
Flange version:         Housing with eccentric
                        clamping, Ø 65 mm
Shaft:                  Tapered shaft 1:10,
                        functional diameter 9.25
                        mm
Degree of protection:   IP20 (EN60529)
Operating temperature:  -20/+115 °C
Electrical connection:  Plug connector, straight,
                        double-row, 12-pin, with
                        locking mechanism and
                        walls
Pin configuration:      D323746
Connecting direction:   Cable outlet for axial and
                        radial useType of packaging:      Collective package in box,
                        quantity of 40
Please pay attention to the product documentation!
